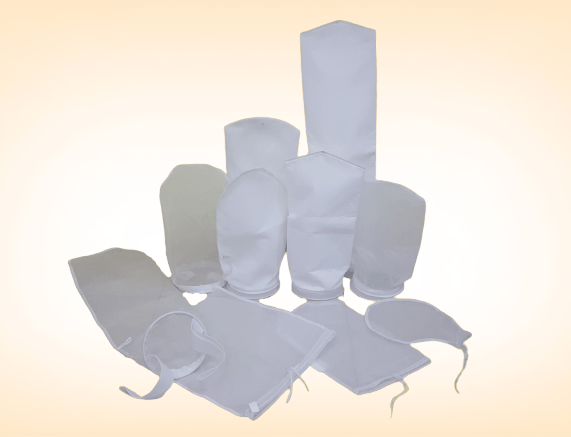

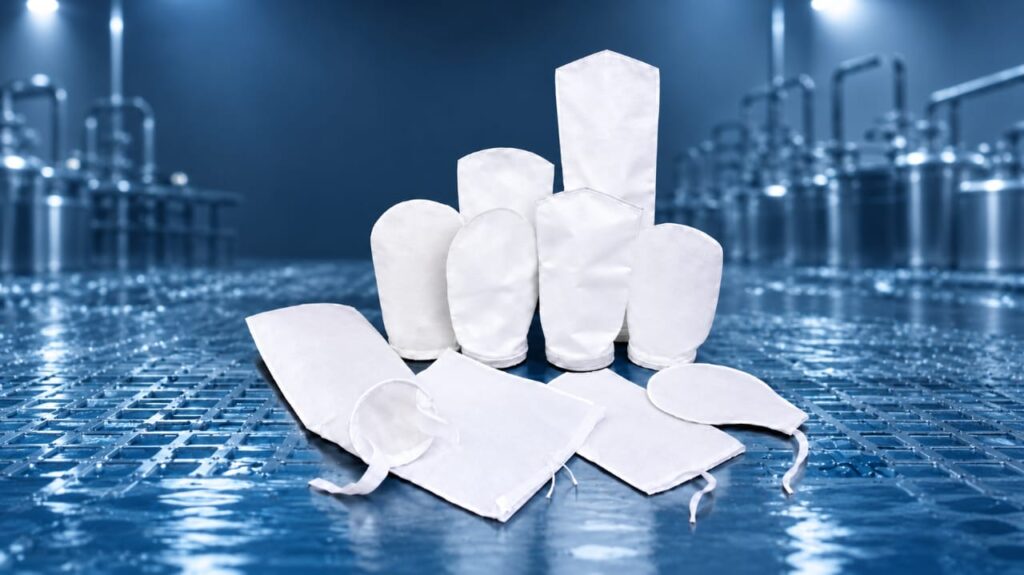

Liquid Filter Bag

GN Liquid Filter Bags

  • Slide title

    Write your caption here
    Button
Download PDF Catalogue

Model & Mesh Opening

NMO Model Mesh Opening (um)
37 400
50 270
75 200
100 150
150 100
200 70
250 60
300 50
400 40
500 35
600 30
800 20
1000 18
PES Model Mesh Opening (um)
50 270
80 200
100 150
150 100
200 70
250 60
300 50
400 40
500 35
600 30
Model Micron
Polyester Needle (PE)felt 0.5 / 1 / 5 / 10 / 25 / 50 / 100 / 200
Polypropylene Needlefelt (PP) 0.5 / 1 / 5 / 10 / 25 / 50

Liquid Filter Bags Description

In the modern industrial age, liquid filtration is widely used in the production process. Filter bags can be the ideal solution for your industrial filtration application needs. It often have the lowest equipment investment cost, and can usually withstand a wide range of process conditions, making them ideal choice for a wide range of applications

Liquid Filter Bags features

  • Absolute competitive prices
  • High solids collection capacity – solids are contained in bag for easy disposal

Material

  • Nylon Monofilament (NMO) / Polyester Monofilament (PES)
  • Polyester Needlefelt (PE) / Polypropylene Needlefelt (PP)

Collar Type

  • Steel Ring / Stainless Steel Ring / Plastic Ring / String

Types

  • Sewn type or Welded type

Bag Size

  • P1 (7” x 17”) / P2 (7” x 31”) / P3 (4” x 9”) / P4 (4” x 15”)
  • Custom-made size available upon request
