Standard Yarns & Materials

Fabric Type & Characteristics
Polypropylene - Offers good tensile strength and abrasion resistance. They perform well in organic and mineral acids, solvents and alkalies. Polypropylene is attacked by nitric and chlorosulphonic acids, sodium and potassium hydroxide at high temperatures and concentrations.
Polyester Needlefelt - Offers good resistance to most acids, oxidizing agents and organic solvents. Concentrated sulfuric and nitric acids are the exception. Polyesters are dissolved by alkalies at high concentrations.
Nomex - Resist attack by mild acids, mild alkalies, and most hydrocarbons. Resistance to sulfur oxides above the acid dew point at temperatures above 300°F is better than polyester. Flex resistance is excellent.
Fiber Tensile Strength Abrasion Resistance Acid Chemical Resistance Alkali Chemical Resistance
Polypropylene Excellent Good Excellent Excellent
Polyester Needlefelt Excellent Excellent Good Fair
Nomex Very Good Very Good Fair Good

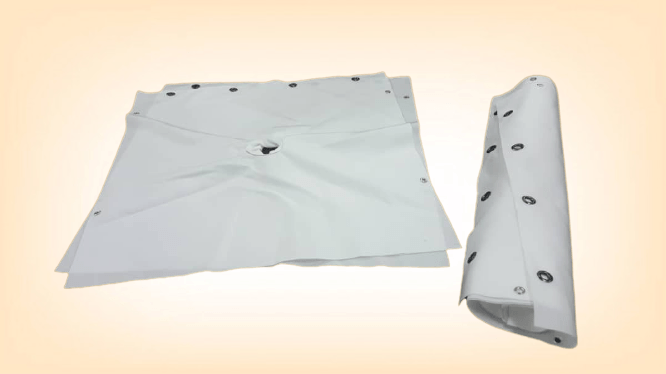

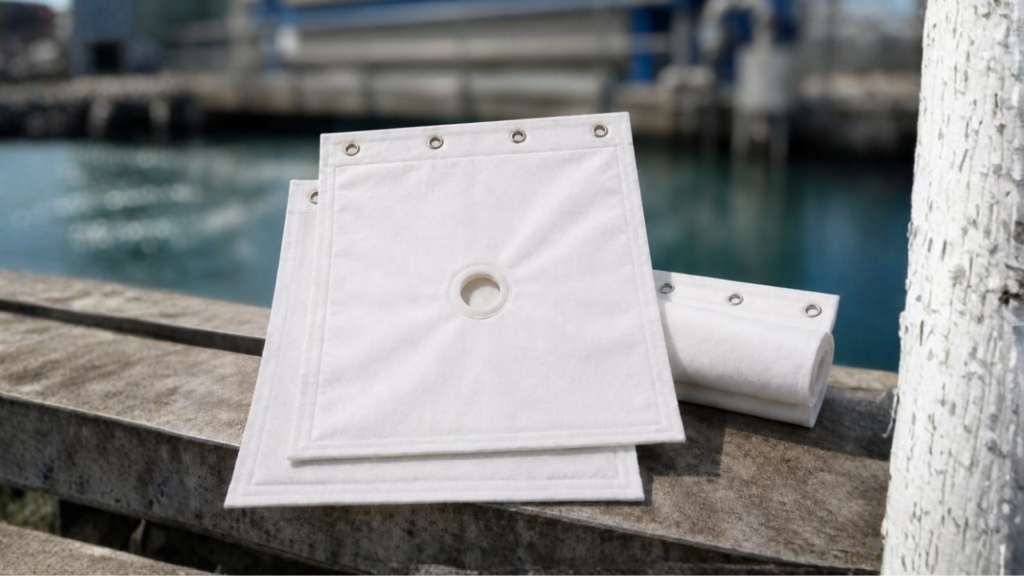

GN Filter Press Cloth Description

A filter press is a piece of equipment used in liquid/solid separation. Specifically, the filter press separates the liquids and solids using pressure filtration, wherein a slurry is pumped into the filter press and is dewatered under pressure. Basically, each filter press is designed based on the volume and type of slurry that needs to be dewatered. Micronics, Inc. is a trusted expert in liquid/solid separation and offers a wide range of filter press types and capacities to suit specific application needs for trouble-free, economical dewatering. These include configurations such as sidebar automatic, manual overhead, automatic dual overhead beam, stainless steel clad, explosionproof filter presses, vacuum filter presses, and hand filter presses

Application

  • Food and beverage processing
  • Chemical Manufacturing
  • Mining Power Generation
  • Aggregates, asphalt and cement production
  • Steel mills
  • Municipal plant

Material

  • Polypropylene
  • Polyester Needlefelt
  • Nomex
  • Carefully chosen filter cloths are critical to proper filtration and dewatering

Pin Holder Type

  • Eyelet
  • Reinforcement Cloth
