Filter Cartridge

GN Filter Cartridge

  • Slide title

    Write your caption here
    Button
Download PDF Catalogue

Technical Characteristics

Micron μm 0.5 / 1 / 5 / 10 / 25 / 50 / 75 / 100
Length (inch) 10 / 20 / 30 / 40
Dimension Inner Diameter (mm) 28 / 30
Outer Diameter (mm) 62 / 68 (with cage)
Media (Yarn) PP / Cleaned PP / Cotton / Blenched Cotton / Rayyon / Glass
Core PP / Reinforced PP / SUS 304
Material Out cage & End parts PP / Reinforced PP
End caps Foamed PE
Seal materials Silicone / EPR / Viton / FEP encapsulated
Operating Max. Temperature (ºC) PP (85) / Cotton (130) / Rayon (230) / Glass 400

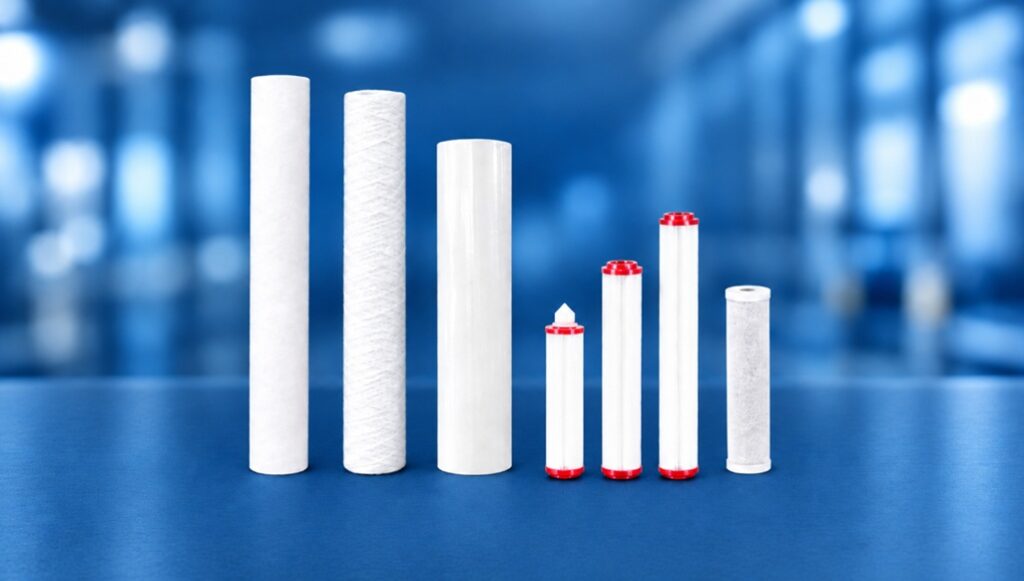

Cartridge Filter Description

A cartridge filter is a piece of tubular filtration equipment that can be used across various industries for an array of filtration requirements. A cartridge is encased within a housing or a casing and used to remove unwanted particles, pollutants, and chemicals from liquids.

Cartridge Filter Features

  • Excellent solids holding capacity
  • Long service life
  • For pre-filtration
  • Absolute low difference of pressure
  • High holding capacity

Material

  • Material: 100% Polypropylene

Application

  • Application: Food & Beverage industry, chemical industry and general process industry

Types

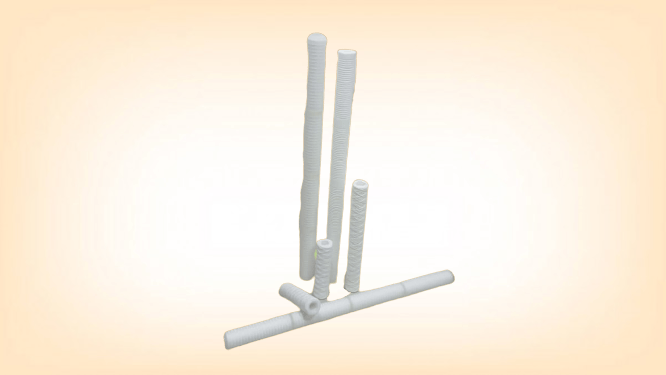

  • String Wound Cartridge
  • Melt-Blown Cartridge

Cartridge Size

  • 10" (inch)
  • 20" (inch)
  • 30" (inch)
  • 40" (inch)
